Seamless Titanium Pipe OD219mm Big Diameter ASTM B861 For Fertilizer Industry

  • 1
  • 2
  • 3

Brand Name : Changsheng Titanium

Model Number : Seamless Titanium Pipe OD219mm

Certification : ISO9001:2015

Place of Origin : Baoji City, China

MOQ : 50kg

Price : USD 25.0/KG - USD 35.0/KG

Payment Terms : L/C, T/T

Supply Ability : 30 Tons per Month

Delivery Time : 25-30 work days

Packaging Details : Soft film wrapped inside, export standard crate outside.

Material : Pure Titanium Gr1/Gr2

Diameter : 50mm-420mm

Wall Thickness : 1mm-50mm

Surface : Pickling and Polished surface

Shape : Round Tube

Stocks : OD100mm/108mm/114mm/133mm/168mm/219mm/247mm/325mm,etc.

Standard : ASTM B338, ASTM B337, ASTM B861

Application : Oil Pipe, Pipeline, Aircraft Hydraulic Systems

Advantage : Good welding propertity, Corrosion Resistance

Origin : Baoji City, China

Contact Now

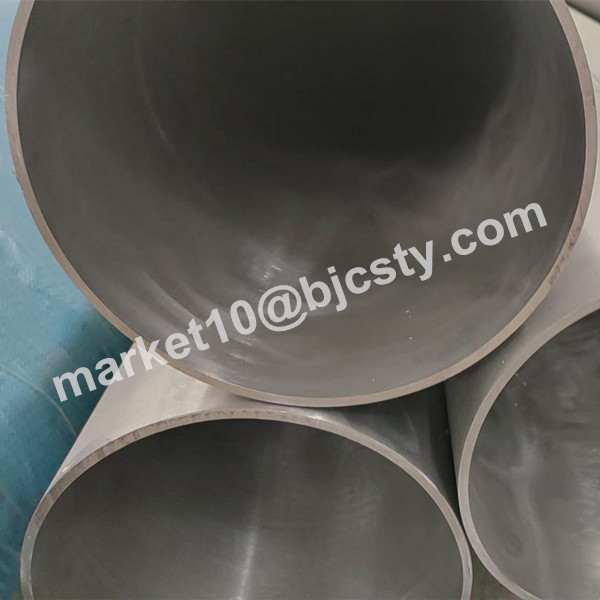

Seamless Titanium Pipe OD219mm Big Diameter

The petrochemical industry, including the fertilizer industry, has a great demand for titanium tubes. Titanium pipes required for a set of polyene phenol equipment is around 99.1 tons, of which the big diameter of 108-630mm titanium pipes accounts for 53.79%. Round titanium pipes are our star products both at domestic and foreign market.
Material: Pure titanium
Designation: Gr1 and Gr2
Outside diameter: OD50mm and OD 420mm
Length within:12m
Surface: Pickling, machined, polished
Standard: ASTM B338 ASTM B337 ASTM B861

Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling, Extruding, Hot Expanding

Custom service: Other dimensions will be supplied upon request.

Regular Specifications:

Φ325*12, Φ325*10

Φ325*6, Φ270*25

Φ273*10, Φ219*10

Φ219*9, Φ219*8

Φ219*6, Φ219*4

Φ194*6, Φ190*11

Φ183*11, Φ183*10

Φ180*11, Φ180*9

Φ168*7, Φ168*6

Φ168*4, Φ159*8

Φ159*6, Φ159*5

Φ159*4, Φ159*4.5

Φ159*3, Φ159*17.5

Φ154*6, Φ152*13.5

Φ152*3, Φ152*15

Φ150*6, Φ150*7

Φ148*13, Φ146*13

Φ141*6.5,Φ141.3*6.35

Φ140*3, Φ135*5.5

Φ135*5, Φ133*4.7

Φ133*5, Φ133*4

Φ133*4.5,Φ133*3

Φ127*8, Φ114.3*6.35

Φ114*4, Φ114*3

Φ108*4, Φ108*3

Φ102*2, Φ89*3

Why choose our big diameter titanium tubes?

  1. It is seamless, good pressure capacity
  2. High precision
  3. High finish surface, excellent flatness
  4. It could be used for direct processing, fabrication, and machining
  5. Large stock, small quantity order, and short lead time
  6. Stable quality, on-time delivery

Why choose titanium tubes?

  1. High strength. The density of titanium is generally around 4.51g/ cm3, which is only 60% of that of steel.
  2. High thermal strength, the use temperature is several hundred degrees higher than the aluminum alloy, in the medium temperature can still maintain the required strength, can work in the temperature of 450 ~ 500℃ for a long time.
  3. Good corrosion resistance. Titanium works in humid atmosphere and seawater medium, and its corrosion resistance is far better than stainless steel;Especially strong resistance to pitting corrosion, acid corrosion and stress corrosion;To alkali, chloride, chlorine organic goods, nitric acid, sulfuric acid and other excellent corrosion resistance.But titanium has poor corrosion resistance to reducing oxygen and chromium salt media.
  4. Good low temperature performance. Titanium can maintain mechanical properties at low and ultra-low temperatures.Titanium with good low temperature performance and very low interstitial elements, therefore, titanium alloy is also an important low temperature structural material.
  5. Titanium is a non-magnetic metal, in a large magnetic field will not be magnetized, and non-toxic.
  6. Good heat transfer performance. Although the thermal conductivity of titanium metal is lower than carbon steel and copper, but because of the excellent corrosion resistance of titanium, the wall thickness can be greatly reduced, and the heat transfer mode between the surface and steam is droplet condensation, reducing the heat group, titanium surface without scaling can also reduce the thermal resistance, so that the heat transfer performance of titanium is significantly improved.
  7. Low modulus of elasticity. The elastic modulus of titanium is 106.4GPa at room temperature, which is 57% of that of steel.

Mechanical Properties of Titanium Metal Material:

ASTM Grade
Alloy composition
Tensile strength
Yield strength
Elongation %
ksi
Mpa
ksi
Mpa
GR1
Unallyed Ti(Pure)35A-CP1
35
240
25
170
24
GR2
Unallyed Ti(Pure)50A-CP2
50
345
40
275
20
GR5
Ti 6Al 4V
130
895
120
828
10E
GR7
Ti-Pd
50
345
40
275
20
GR9
Ti 3AI 2.5V
90
620
70
483
15F

Other Industrial Applications of Seamless Titanium Tube:

Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
