Descriptions of Titanium Stud Bolt din938
Titanium Stud Bolt din938 is an essential component in industrial, automotive, and engineering applications. Titanium Stud Bolt din938 is designed to provide a secure connection between two components and are used in a wide variety of industries, including aerospace, automotive, and construction. Titanium stud screw are strong, durable, and corrosion-resistant, making them ideal for applications where a high level of strength and reliability are required. Titanium stud screw are available in a variety of sizes and lengths, and can be customized to meet the specific needs of each application.
Our Titanium Stud Bolt din938 in stock
1. Grade:Gr2, Gr5(Ti-6AL-4V); UNS 50400 and UNS R56400
2. Size:M3-M52 Titanium Stud Bolt din938 customized size acceptable
3. Titanium color, green, blue ,gold, black, purple Titanium Stud Bolt din938
4. Pitch:1.0/1.25/1.5/2.0 Titanium Stud Bolt din938
5. Related Standard; DIN938, DIN939, DIN913 Titanium Stud Bolt
Physical Properties of Titanium Stud Bolt din938 |
| Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Composition of Titanium Stud Bolt din938 |
| Grade | Fe Max | O Max | N Max | C Max | H Max | Pd Max | Al Max | Va Max | Ni Max | Mo Max |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | | | | | |
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | | | | | |
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | | | | | |
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | | 5.5-6.7 | 3.5-4.5 | | |
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | | | | |
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | | 2.5-3.5 | 2.0-3.0 | | |
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | | | | 0.6-0.9 | 0.2-0.4 |
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | | 5.5-6.5 | 3.5-4.5 | | |
| Ti | Balance |
Titanium Stud Bolt din938 Detail Drawing

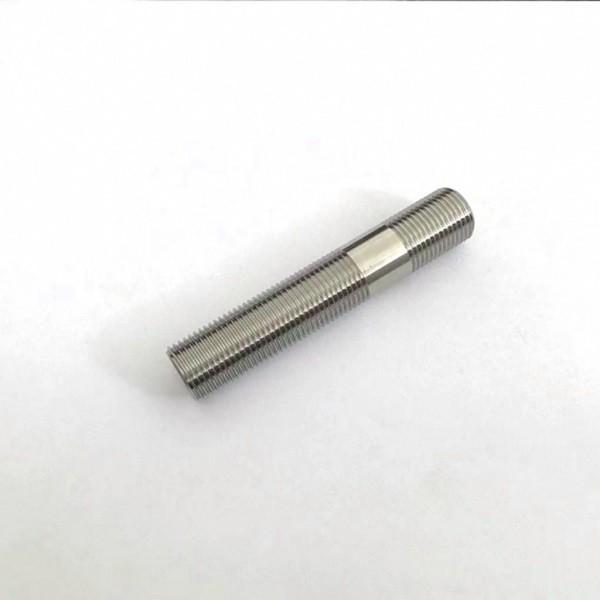

Picture showing of Titanium Stud Bolt din938
Applications Titanium Stud Bolt din938
Titanium Stud Bolt din938 are one of the most popular types of fasteners used in a variety of industries. Titanium Stud Bolt din938 are typically used to secure two objects together, such as two pieces of metal or two pieces of wood. Titanium stud screw are also used to hold parts together when they need to be bolted down. Titanium stud screw are lightweight, strong, and highly resistant to corrosion and rust. Din939 Titanium stud screw are also more resistant to fatigue than traditional steel studs, so they are often used in applications where fatigue is a concern. Din938 Titanium stud bolt are commonly used in the aerospace, automotive, and marine industries, as well as in the construction, electrical, and plumbing industries.
